Radar Security Detector (Outdoor Detector)

Facebook   Twitter   Delicious   Google   My EC21   Email this page   Report Item Inquire now

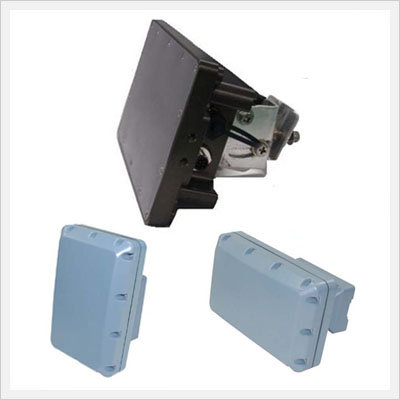

Radar Security Detector (Outdoor Detector)

Click to enlarge image

 Origin

Korea

 Model Number

DND-30L/30W, DND-60L/60W, DND-90L/90W


Features

  • Radar Sensor control with intelligent digital technology using the Module.
  • 12 zone (2.5, 5m , 7.5m* 12) can be split off and control and is available for the desired zone (just off exit boundary and possibleboundary)
  • There is a steady signal is equalized regardless of the detectionrange ,virtually no malfunction.
  • Can be remote controlled by RS-485 communication.
  • Anti-Masking Function
  • Bovine animals avoidance (PET Immunity) Immune and natural environment (snow, biangae, storm, etc.) Function
  • High pressure voltage failure avoidance
  • Ideal for security boundary of varied terrain (screen wall, valleys, plains, etc.)

Specification

Specification
Type
Specification
Type
Voltage
15V ~30Vdc
Mounting Height
1M
Power Consumption
1.5W(max)
Tamper Switch
Tampercircuit
Speed
0.3~8M/sec
Dimensions(H*W*D)
210mmX135mmX55mm
(Bracket Except)
Frequency
24.125GHz
Weight
0.6kg
Alarm Outputs
Relay(Normally closed)
Operating Temp
-40¡ÆC ~+85¡ÆC
Detection Distance
Detection Range Reference
(page2)
Mounting Style
Wall, Fence,etc
Detection Height
FunctionIndication
LED is ON during Alarm
Detection Width
Interface
RS-485

‥Detection distance: There may be differences depending on the installation environment.

Reference

  • Green Zone(Approved passages) : The required quantity of subzones can be disconnected with the aim to organize approved passages through the gates.
  • Theprotection of pipelines : The sensors [ND-30L/30W] [DND-60L/60], and [DND-90L/90] are used for the protection of pipelines and other similarobjects.
    Only necessary subzones are activated. The others are disconnected to exclude the influence of industrial and natural factors on the total interferenceimmunity.
  • Theprotection of containers at ports : The masts with mounted sensors of [DND-30L/30W] or [DND-60L/60W] or [DND-90L/90W] modifications are installed for the containers protection at ports.
    Each sensor protects its own site with a group of containers. Such protection system permits to detect the exact position of an intruder.

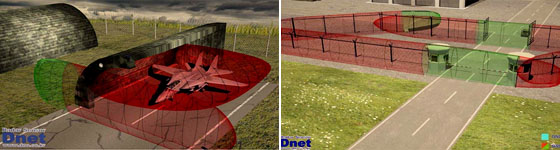

3D Image

Detecting
No Detecting In GreenZone (Smartphone Control)
After passing, Redzone touch (Smartphone Control)
