K-Band Radar Sensor (DNC-334)

Facebook   Twitter   Delicious   Google   My EC21   Email this page   Report Item Inquire now

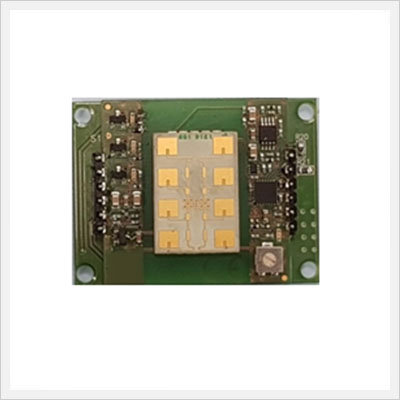

K-Band Radar Sensor (DNC-334)

Click to enlarge image

 Origin

Korea


Features

  • Ultra-compact radar sensor with small, thin and slim design
  • Detection distance: up to 12m
  • Detection range adjustment function
  • Proximity switch less than 10cm
  • Signal Output (Option): Relay (NO or NC) and TTL (0V / 5V)

Option

  • Speed (1 ~ 32km / h) confirmation function
  • Direction (forward / backward) confirmation function (2 ~ 12m) and forward / backward direction selectable
  • No Housing

Specification

PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
* Radar
transmit frequency
24.050
24.250
GHz
output power (EIRP)
20
dBm
* Sensor
max adjustable detection range
motion detection for an RCS = 1m2
12
m
switch functionality
E.g. Detection of a hand
0.1
m
range for direction
of movement recognition
E.g. Detection of a person
2
12
m
activation time switch
400
ms
velocity range
0.7
34
km/h
antenna pattern (10dB width)
compare plot on page 3
43
°
116
°
* Power supply
supply voltage
12
15
V
supply current
full operation
55
60
65
mA
* Environment
operating temperature
-20
+60
°C
storage temperature
-40
+85
°C
* Mechanical Outlines
outline dimensions
heigh
lengh
width
16.0
34.0
45.5
mm
* Weight
13.2
g

Function Description
